How to Choose the Right Hydraulic Gear Pump?
Choosing the right Hydraulic Gear Pump starts with the machine, not the catalog. A compact pump may fit neatly beside a steel reservoir, yet still deliver too little flow under load. Begin with required flow, operating pressure, shaft speed, fluid viscosity, and duty cycle. These figures shape performance, heat, noise, and service life.
Hydraulic engineer Herbert E. Merritt, author of Hydraulic Control Systems, offers a useful design lesson: match the pump to the circuit’s operating needs. In brief: “Choose for the circuit, not the catalog.” This is a concise paraphrase of that engineering principle, not a verbatim quotation. It matters because a pump’s displacement rating alone cannot predict how it will behave in a real system. Check the manufacturer’s pressure and speed limits, inlet conditions, rotation direction, mounting style, and shaft compatibility. A small mismatch can bring cavitation, excess heat, or premature wear. Not glamorous. Still important.
This guide explains how to compare fixed-displacement gear pumps and identify the details that deserve closer attention. It also considers fluid compatibility, filtration, noise, and maintenance access. For example, dusty surroundings may make filtration and inspection intervals especially important. A selection can look sound on paper and disappoint in operation; that deserves honest review. Use verified equipment data and qualified engineering judgment before finalizing a pump choice.
Define the System Requirements for the Hydraulic Gear Pump

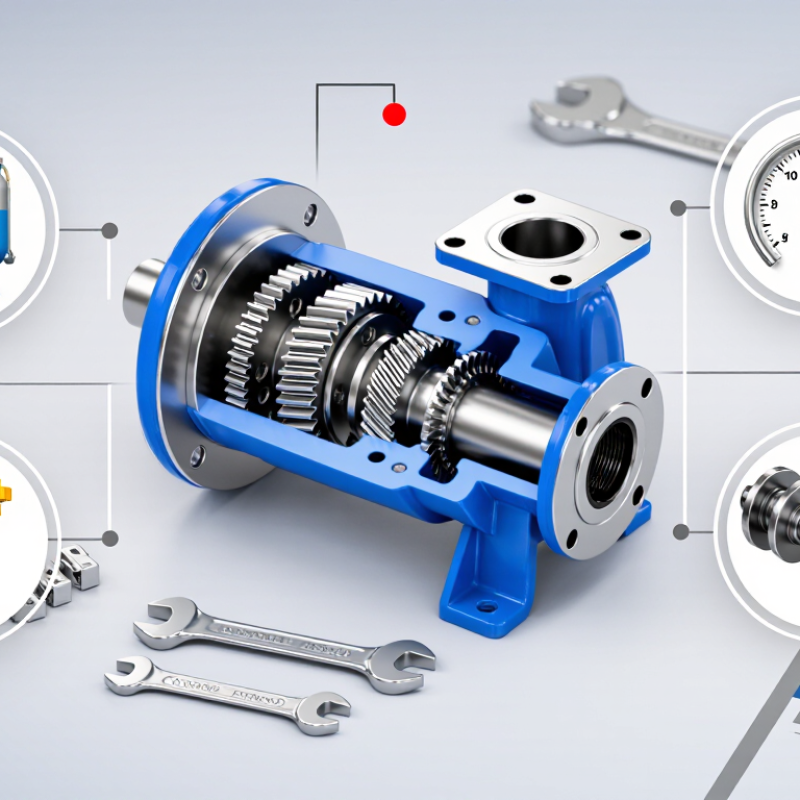

How to Choose the Right Hydraulic Gear Pump?
Define the System Requirements for the Hydraulic Gear Pump
Start with the machine’s required flow and pressure, not a pump catalogue. Calculate actuator demand from its dimensions and speed. For example, a 50 mm-bore cylinder moving at 0.1 m/s needs about 11.8 L/min theoretically. Allow for leakage, pump efficiency, and simultaneous movements. Measure the real duty cycle. Peak pressure matters, but so does how long the system holds it.
Check the operating conditions the pump must actually endure. Record shaft speed, fluid viscosity across cold starts and hot operation, inlet-line dimensions, and reservoir temperature. A restrictive suction line can starve the pump; a small reservoir can let heat accumulate. Don’t overlook contamination. ISO 4406:2021 classifies fluid cleanliness using particle counts at three size thresholds, helping specify filtration against the equipment’s needs. Too often, that requirement is left vague.
Specify how performance will be verified, too. ISO 4409:2019 sets test methods for positive-displacement pump performance, including flow, speed, pressure, and power measurements. Ask for data at the intended operating conditions, not just a headline maximum. A fixed-displacement gear pump can send excess flow across a relief valve, turning useful power into heat. I would revisit the sizing if the proposed operating point depends on continuous bypass. Some uncertainty remains until the complete circuit is tested.
Compare External and Internal Gear Pump Designs
External and internal gear pumps both move fluid through trapped spaces, but their geometry changes noise, pressure capability, and service needs. An external pump uses two meshing gears; its compact housing suits mobile equipment and steady, medium-pressure circuits. An internal pump places a smaller gear inside a larger ring gear. The crescent-shaped divider separates inlet and outlet flow, often producing quieter operation and lower pulsation. In a workshop, that difference can be heard as a softer hum—not silence.
Compare test curves, not labels.
ISO 4409:2019 defines performance testing for positive-displacement pumps, including flow, speed, pressure, and temperature conditions. Ask for curves measured with fluid viscosity and temperature close to your real duty cycle. A pump’s rated flow alone is not enough. For example, cold oil at startup can raise inlet losses, while thin, hot oil can increase internal leakage. External designs are often simpler and less costly to maintain; internal designs may be preferable where noise matters. These are tendencies, not guarantees.
Check the manufacturer’s reported volumetric and overall efficiency at your operating point, plus allowable speed and inlet pressure. Compare the same test conditions across designs; otherwise, the numbers can mislead. I would also inspect the suction line and filtration plan before blaming a pump for poor performance. Small detail, big consequence. Internal pumps can be quieter, but their compactness does not automatically make them the right fit. Test data should settle that question, though field conditions rarely behave perfectly.
Match Pump Displacement, Flow, and Pressure to the Application
Selecting a hydraulic gear pump starts with the machine’s actual flow demand, not the largest number in a catalog. A fixed-displacement pump moves a set volume per shaft revolution. At a given speed, displacement largely determines theoretical flow; leakage and fluid conditions reduce delivered flow. For example, a conveyor needing 24 liters per minute may require more theoretical capacity to cover losses. Check performance at the intended speed and oil viscosity. Small mismatches matter.
Pressure is different. The load and circuit resistance determine working pressure, while the pump’s pressure rating sets a limit. It does not force the system to run at that pressure. Estimate peak pressure during startup, lifting, or a jam, then compare it with continuous and intermittent ratings. Confirm the relief valve setting and allow for pressure spikes. A pressure number alone is not enough. Cold oil, restricted suction lines, and long hoses can affect real operating conditions.
Match displacement to flow across the machine’s normal speed range. Real machines rarely hold one speed. If the drive slows, flow falls too, which may make an actuator sluggish. An oversized pump can create heat through throttling and waste power. Check shaft speed, duty cycle, inlet conditions, and motor capacity together. Then compare measured flow and pressure under load, not only at idle. Calculations help, but field readings can expose assumptions that looked tidy on paper.
Check Fluid Compatibility, Speed, and Operating Conditions
How to Choose the Right Hydraulic Gear Pump?
Check Fluid Compatibility, Speed, and Operating Conditions
Match the fluid to the pump’s internal materials and seals. Check the fluid maker’s viscosity range at both cold-start and operating temperatures; oil that is too thick can starve the inlet, while thin oil can increase leakage. Verify the permitted speed, pressure, and duty cycle in the pump’s technical documentation. There is no universal fluid choice, and a familiar rule of thumb may not fit your system. Keep contamination in view: ISO 4406:2021 classifies particles by size. For example, code 18/16/13 represents 1,300–2,500 particles per millilitre at 4 μm(c), 320–640 at 6 μm(c), and 40–80 at 14 μm(c). This is a cleanliness classification, not a universal pump target.
Operating conditions matter at least as much as the nameplate rating. Consider fluid temperature, inlet pressure, start-stop frequency, and whether the pump runs continuously. A cold morning start can make fluid sluggish; a restricted suction line may worsen the strain. Check shaft alignment and mounting, too. Small installation errors are easy to overlook, but they can add noise and wear. Compare actual system demands with the pump’s rated limits before selecting a displacement or speed.
Tips: Confirm viscosity at the expected temperatures, then check speed and pressure limits. Inspect suction-line restrictions and fluid cleanliness after installation. Recheck the assumptions; real operating conditions can differ from the design sheet.
Assess Efficiency, Durability, and Maintenance Requirements
A hydraulic gear pump should match the machine’s real pressure, speed, and duty cycle, not just its catalog rating. Check the required flow at operating speed, then compare expected output with the pump’s displacement. Volumetric efficiency drops as internal clearances wear, especially when oil is hot and thin. Heat tells a story. Measure oil temperature during a representative work cycle, and listen for changes in noise or vibration. I would not treat a published efficiency figure as a field guarantee; installation, fluid condition, and inlet plumbing all affect results.
Durability depends on more than a heavy housing. Confirm that the shaft, bearings, and seals can handle the pressure and side loads in your system. Clean oil matters: fine particles can score internal surfaces, while a restricted inlet may cause cavitation and damage. Keep suction lines short, inspect filters, and record pressure and temperature readings. Maintenance needs should fit the equipment’s service schedule and the skills available on site. Look for clear inspection points and accessible seals. A pump that is efficient on paper may still be a poor choice if routine checks require long downtime. Field conditions are messy, and a clean test bench cannot capture every one.
How to read this chart: These are representative efficiency ranges, not guaranteed ratings; actual performance depends on pump design, pressure, speed, fluid viscosity, and operating temperature. For durability, choose a pump rated for your system pressure and fluid conditions, and avoid inlet restriction and cavitation. For maintenance, follow the manufacturer’s fluid-cleanliness requirements and regularly inspect filters, connections, leaks, noise, and operating temperature.
